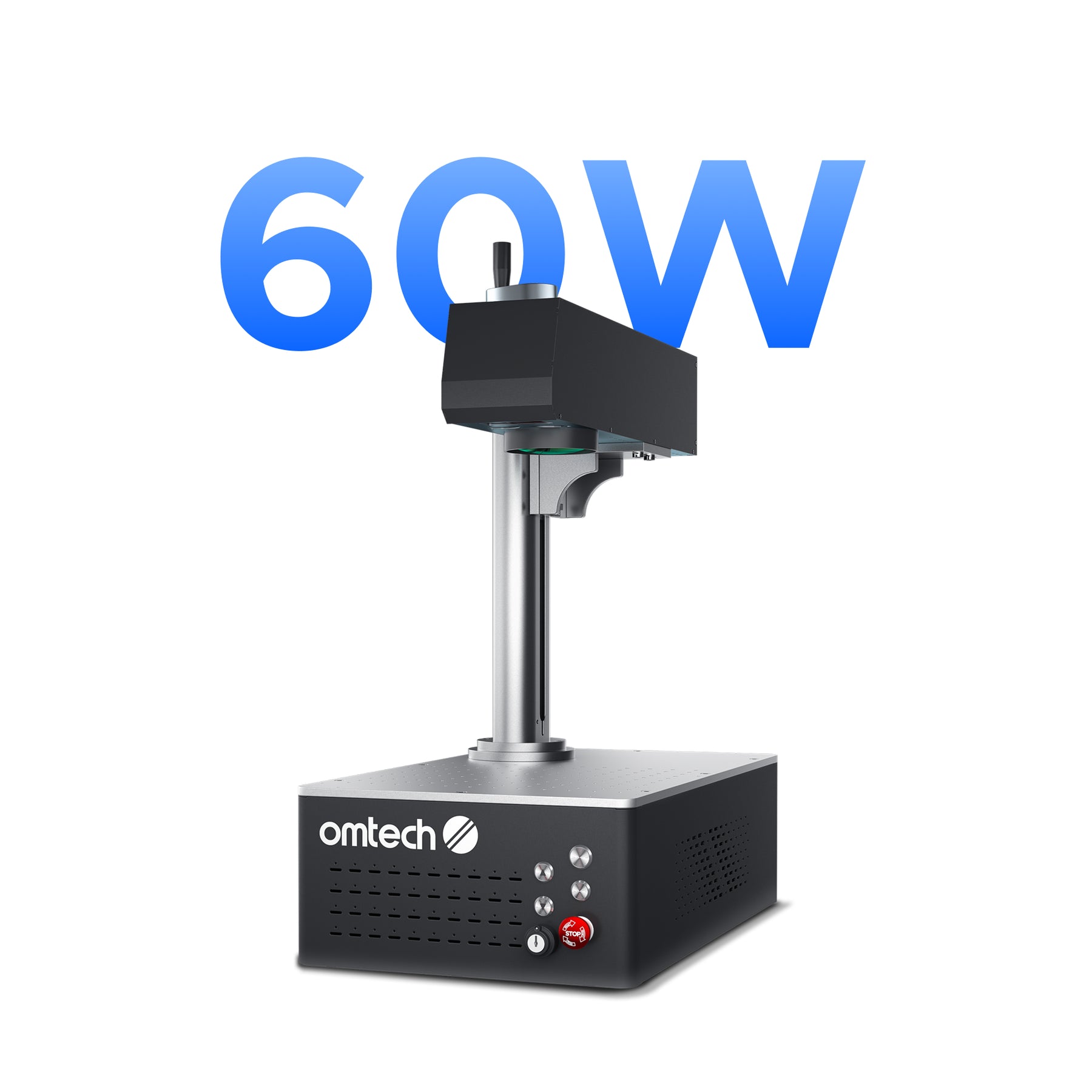

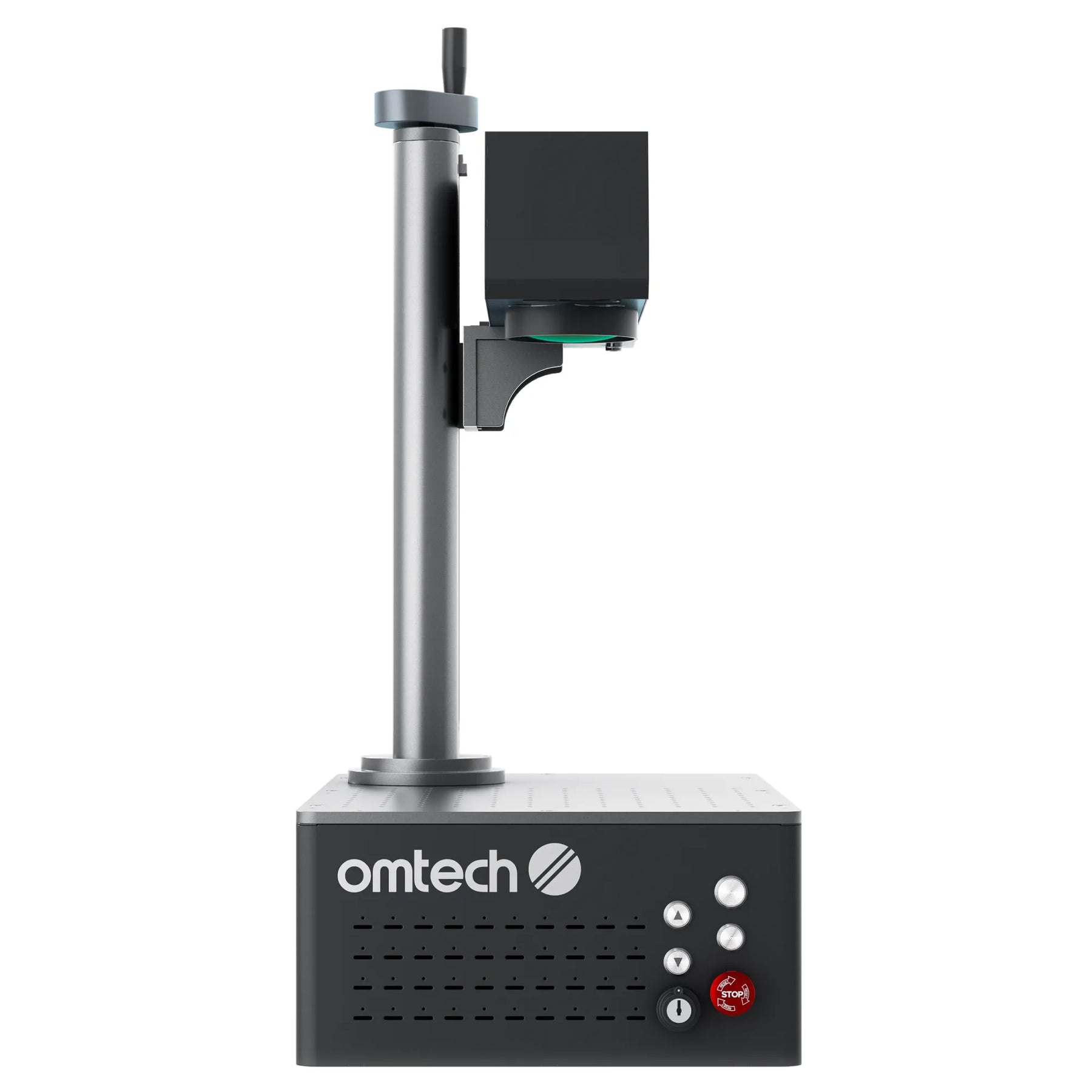

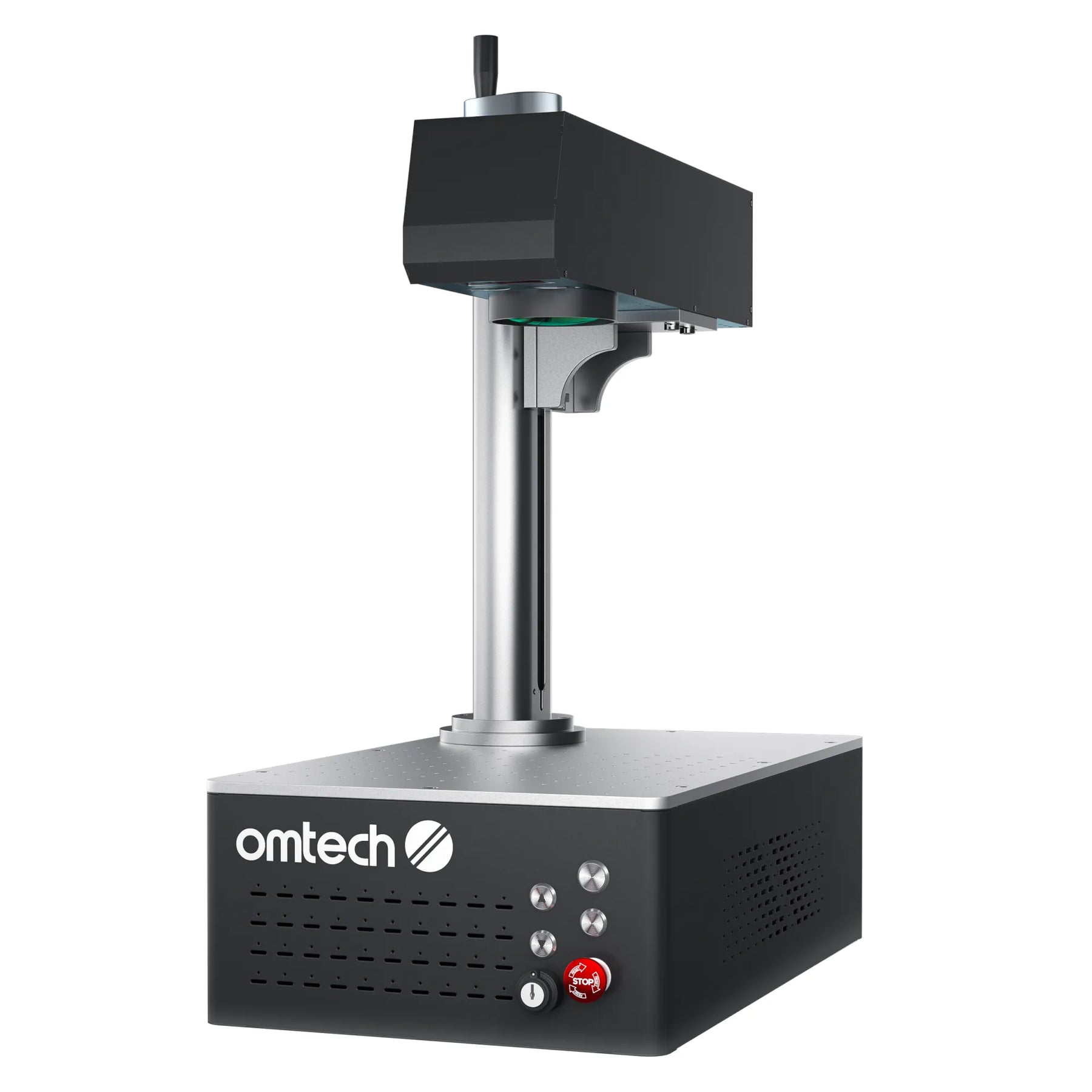

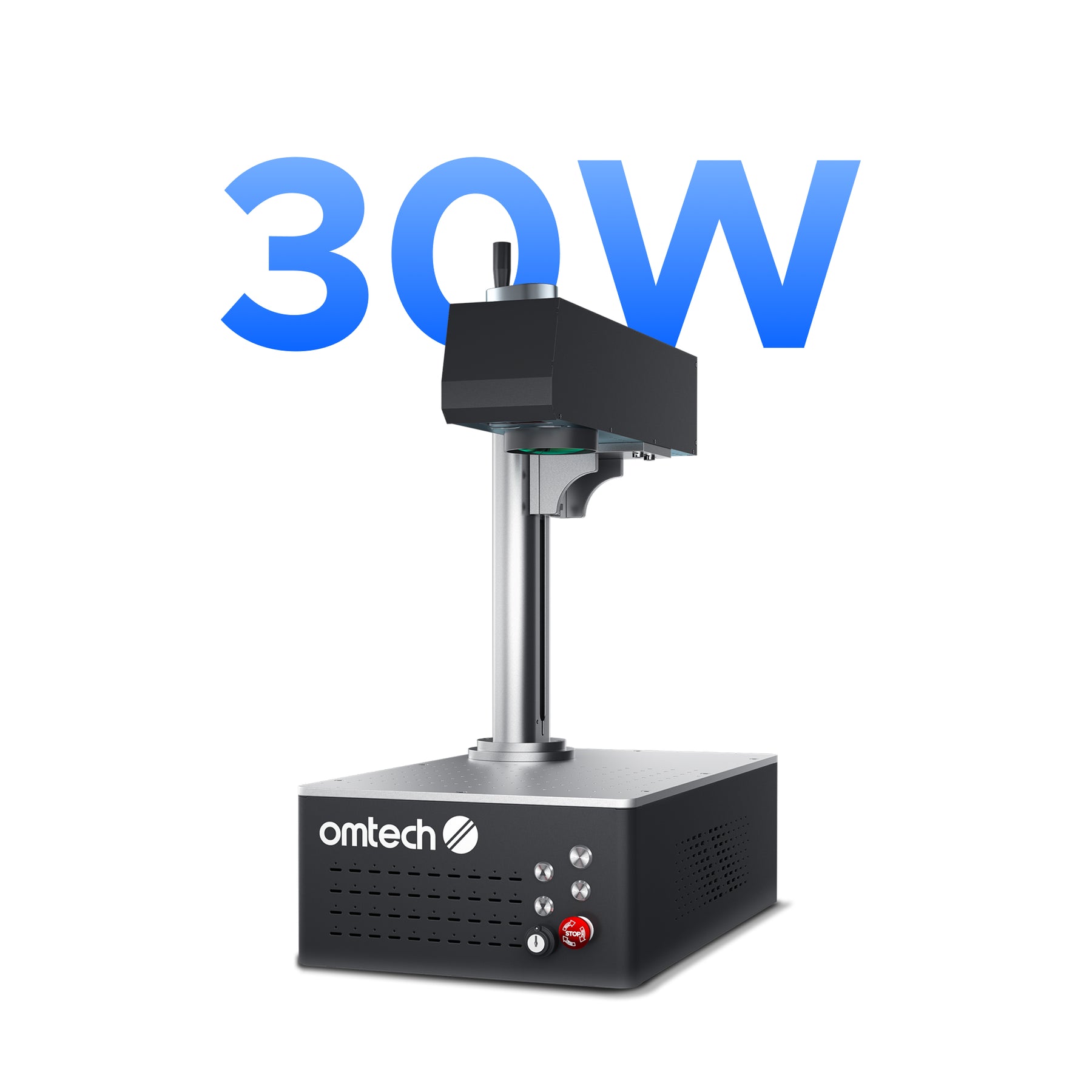

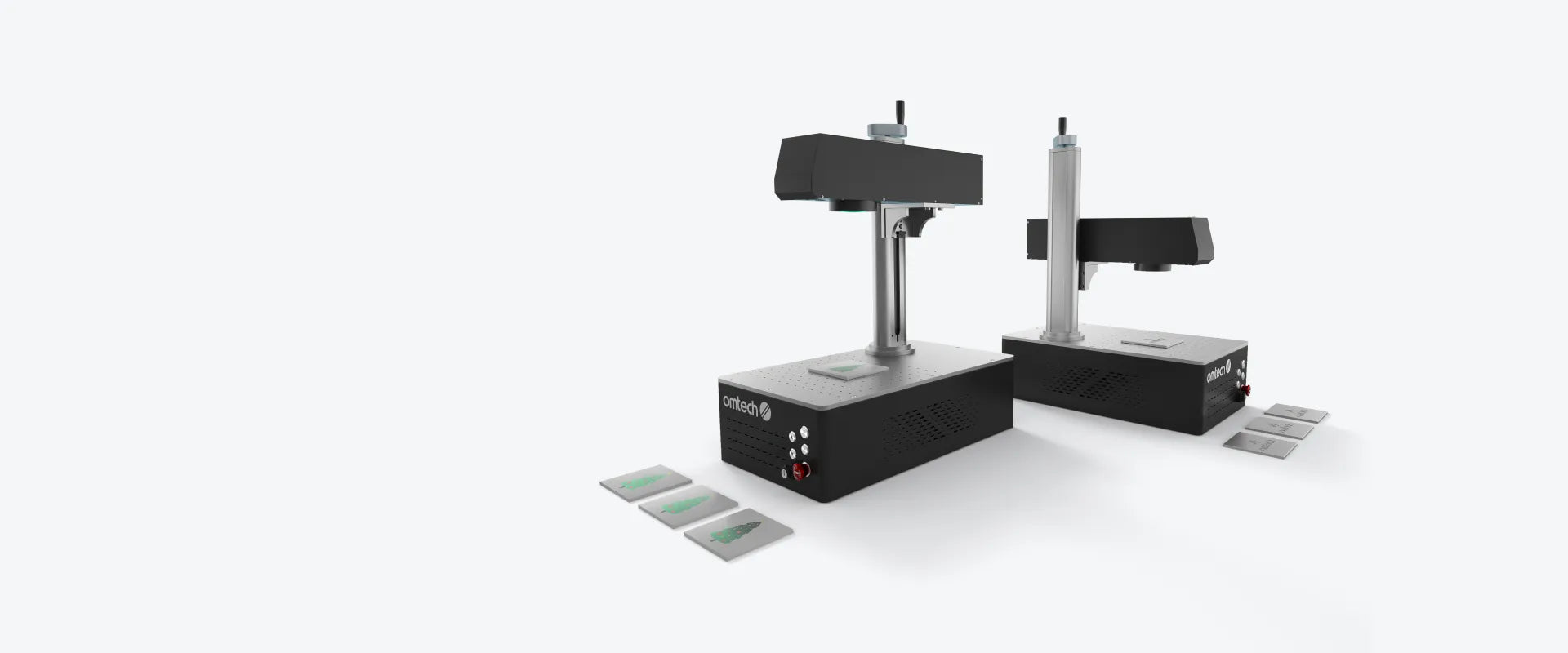

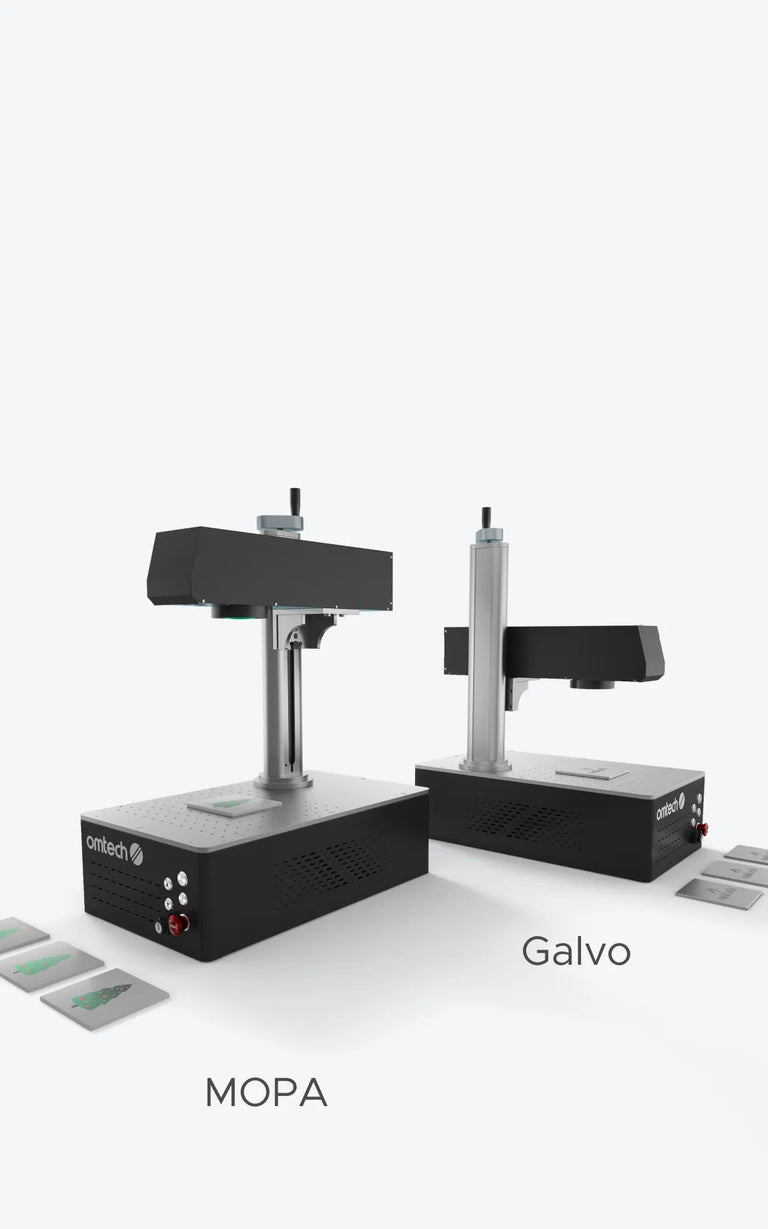

OMTech Auto-Focus MOPA Fiber
Laser Marker

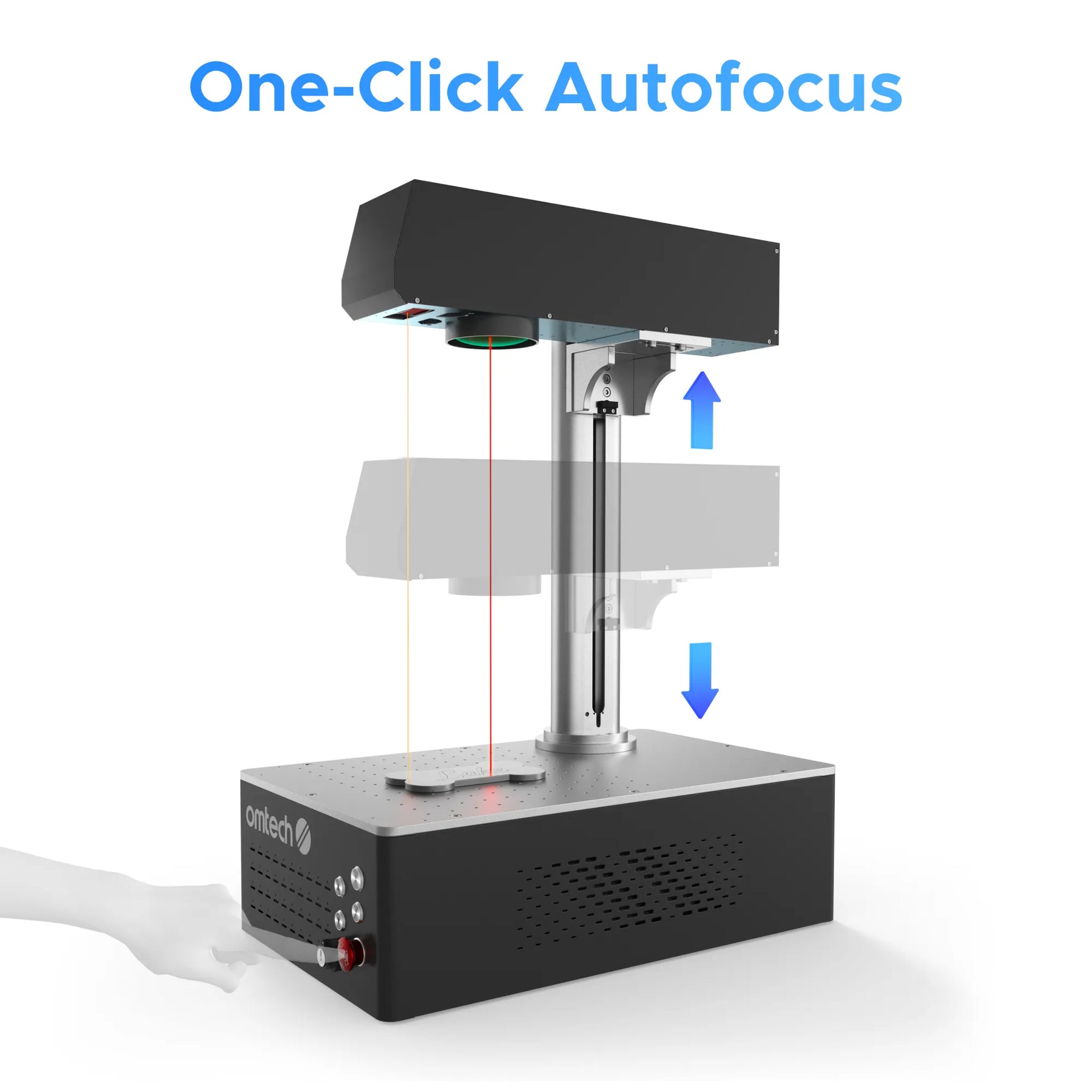

Automated Focus for Simplified Marking
Specifications & Package List
| Specifications: |

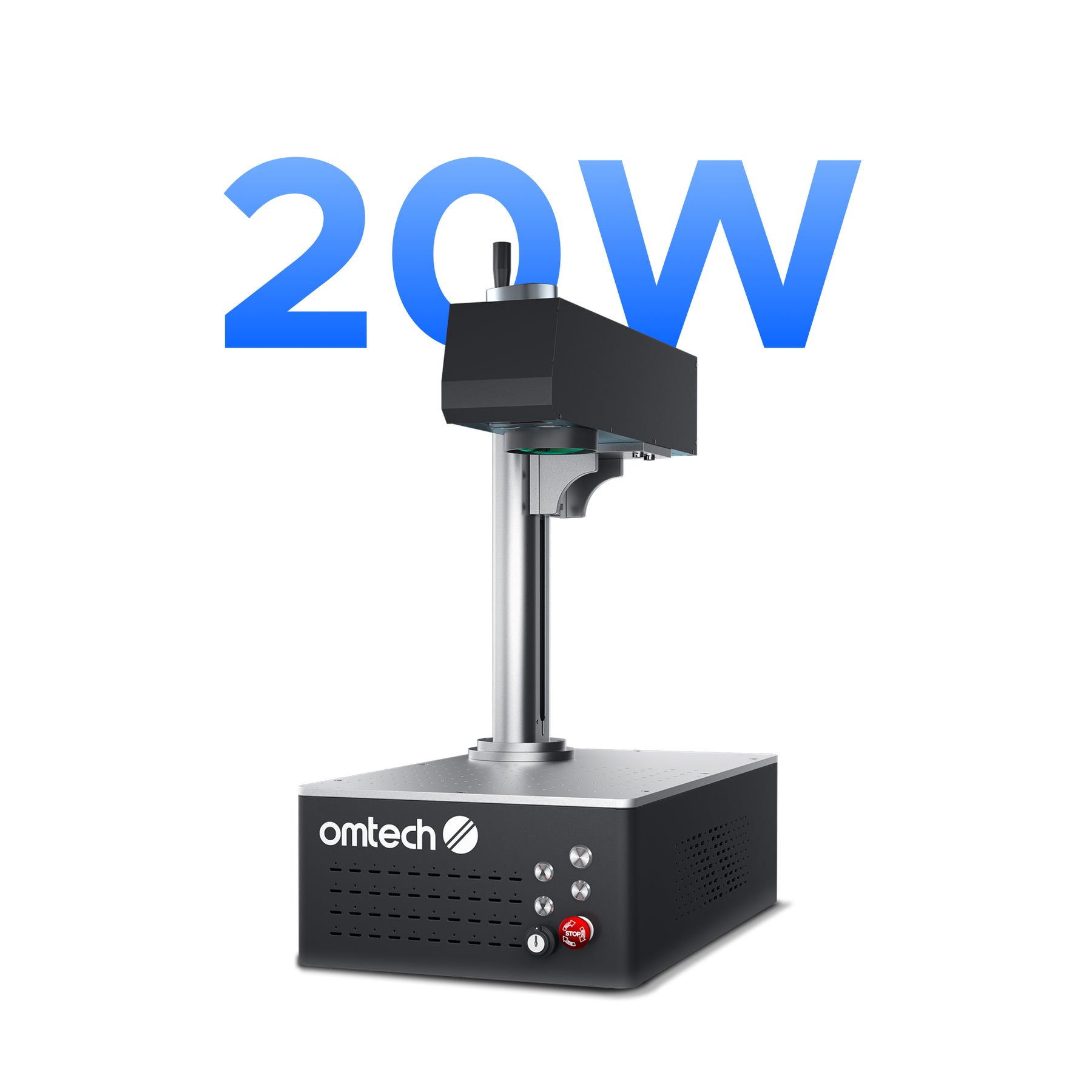

Laser Power: 20W/30W/60W Laser Wavelength: 1064 nm Laser Frequency: 1-4000 kHz Pulse Width: 2-500 ns Field Lens Focal Length: 9.3 in. (210 mm) Processing Area: 5.9 x 5.9 in. (150 x 150 mm) Workbed Area: 11.8 x 13.4 in. (300 x 340 mm) Max. Engraving Speed: 393.7 ips (10,000 mm/s) Max. Engraving Depth: 0.04mm~0.1mm Positioning Accuracy: ±0.04 in. (±1 mm) Marking Accuracy: ±0.0004 in. (±0.01 mm) |
|---|---|

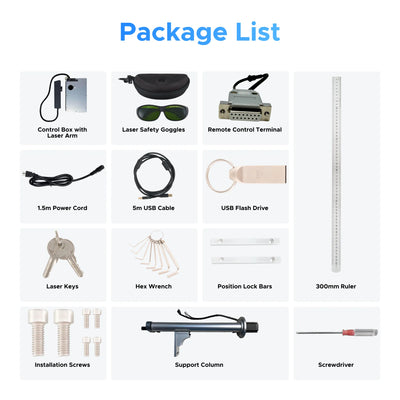

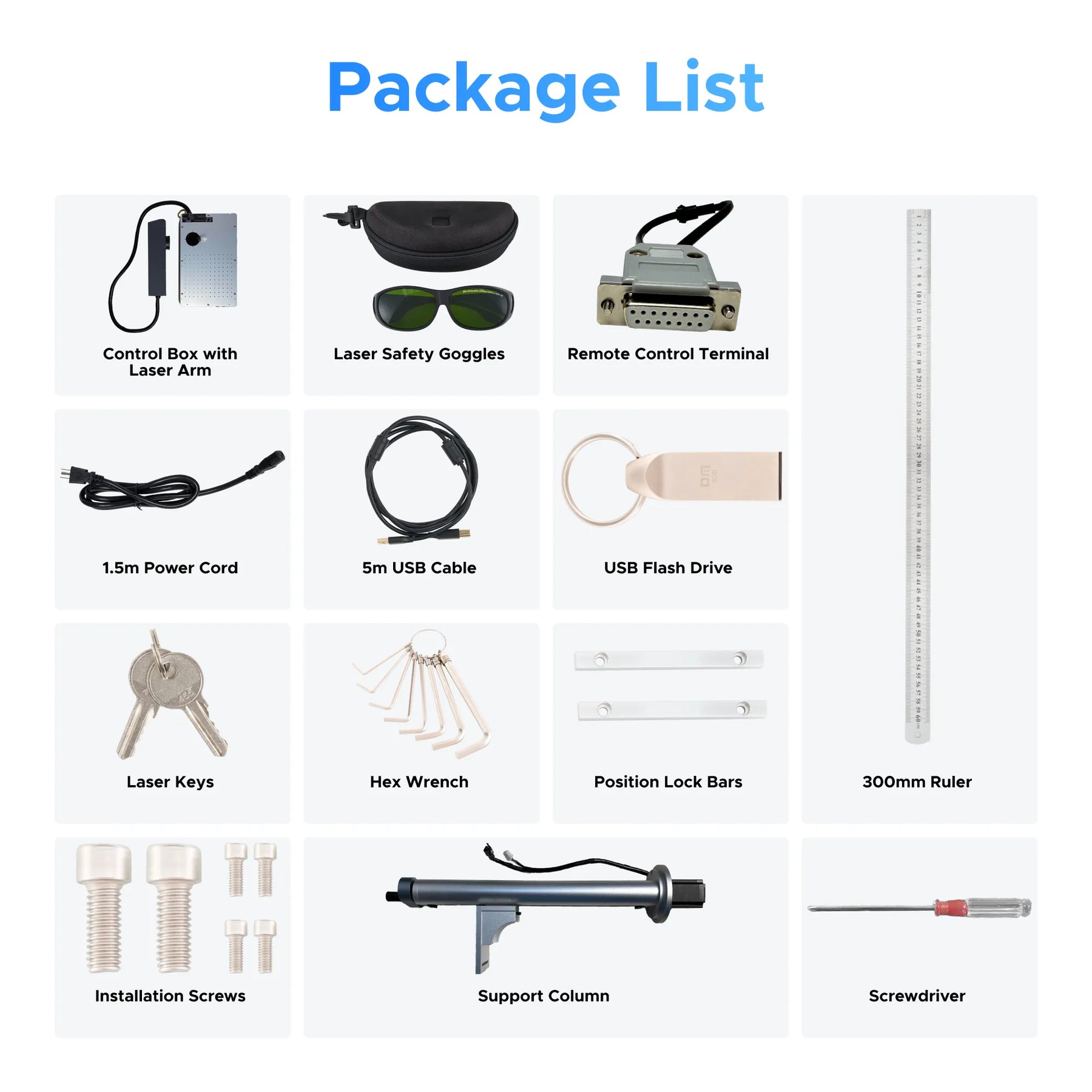

| Package List: |
1x Control Box with Laser Arm 1x Support Column 1x Power Cord 1x USB Cable 1x USB Flash Drive 2x Laser Keys 1x Ruler 1x Hex Wrench Set 2x Position Lock Bars 1x Installation Screw Set 1x Pair of Safety Goggles 1x Remote Control Terminal 1x Screwdriver 1x Manual |
